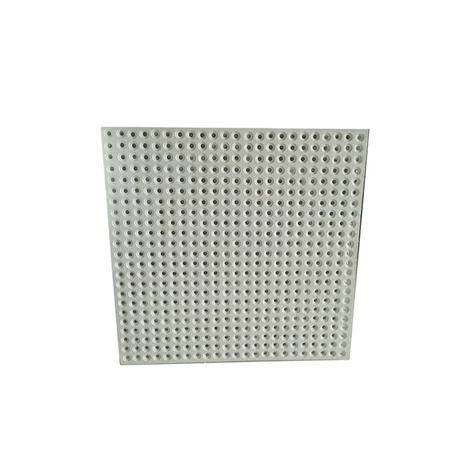

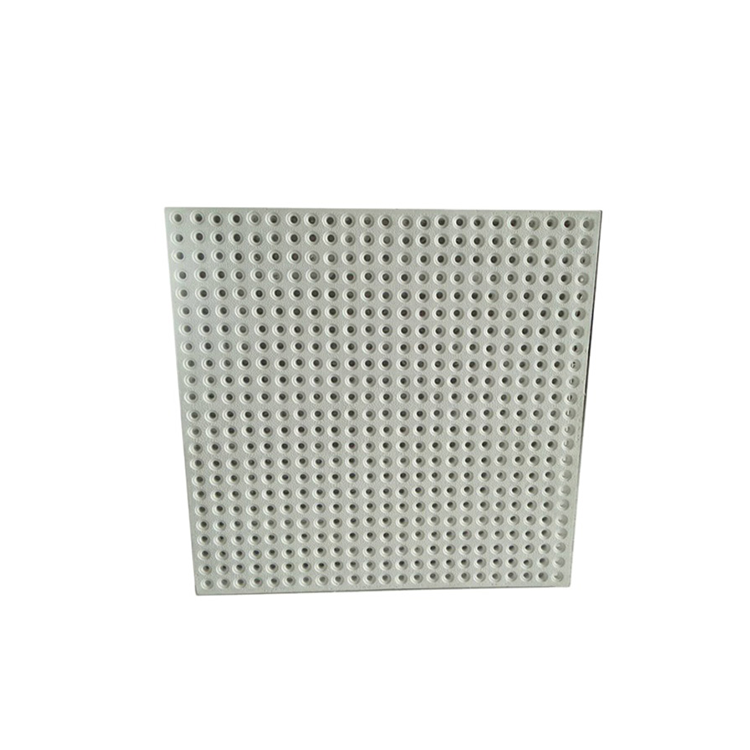

How to Specify Perforated GRG Gypsum Ceiling Tiles

Architects and acousticians frequently face the challenge of achieving a monolithic, seamless ceiling aesthetic without sacrificing critical acoustic performance in commercial and institutional spaces. Specifying glass fiber reinforced gypsum (GRG) requires precise engineering. Miscalculating open area, selecting incompatible grid systems, or ignoring the structural limits of gypsum perforations leads to panel deflection, acoustic failure, and costly installation delays.

This guide provides a comprehensive, technical framework for specifying a perforated grg gypsum ceiling tile, covering hole pattern selection, open area calculations, acoustic backing requirements, and grid layout integration to ensure structural integrity and verified acoustic outcomes.

• Acoustic vs. Structural Trade-offs: The open area percentage directly dictates the Noise Reduction Coefficient (NRC), but exceeding material-specific open area thresholds compromises the GRG panel's structural integrity and increases sag risk.

• Pattern and Margin Precision: Specifying unperforated borders (edge margins) is mandatory for GRG to maintain edge strength, conceal suspension grids, and allow for field cutting at perimeters.

• Backing Dictates Performance: A perforated panel alone offers minimal absorption; specifying the correct non-woven acoustic fleece and supplemental plenum insulation is required to hit target NRC ratings.

• Grid Compatibility: GRG panels are heavier than standard mineral fiber. Suspension systems must be evaluated for load-bearing capacity, with grid layouts mathematically centered to ensure uniform perimeter borders.

Framing the Specification: Success Criteria for a Perforated GRG Gypsum Ceiling Tile

Establish the required Noise Reduction Coefficient (NRC) and Sound Attenuation Class (CAC) for the space before selecting panel specifications. You cannot engineer a ceiling system without knowing the baseline acoustic targets. A busy open-plan office requires vastly different sound absorption metrics compared to a university lecture hall or a high-end restaurant. Once the acoustician defines the NRC target, you can begin filtering your GRG options based on open area and backing materials.

Contrast GRG with perforated metal or standard drywall. GRG offers distinct advantages: it is non-combustible, highly dimensionally stable, and capable of achieving a completely seamless finish when taped and mudded correctly. However, it also presents specific constraints. GRG is significantly heavier than standard mineral fiber tiles and can be brittle during handling. Installers must treat the edges with care to prevent chipping before the panels are secured in the grid.

Define the aesthetic intent early in the design phase. Decide whether the goal is a fully concealed suspension system that mimics a monolithic drywall ceiling or a standard tegular lay-in grid that allows for rapid plenum access. This decision dictates the edge profile of the panels you specify. Structure the architectural specification using four core, standardized components to eliminate ambiguity during the bidding process:

• Perforation Shape (e.g., round, square, slotted)

• Perforation Pattern and Orientation (e.g., straight, staggered, diagonal)

• Hole Size (diameter or width in millimeters)

• Open Area Percentage (the total void space relative to the panel face)

Determining the Optimal Hole Pattern, Size, and Shape

Round holes remain the industry standard for balanced acoustics and structural stability. The circular geometry distributes stress evenly across the gypsum matrix, reducing the risk of micro-fractures during transit and installation. Square and slotted holes offer higher aesthetic appeal and a more contemporary look, but they require thicker panel specifications. The sharp 90-degree corners of square perforations create stress concentrations, making the panels more susceptible to cracking if the open area is pushed too high.

Hexagonal and custom patterns suit high-end architectural applications requiring specialized CNC routing. These designs demand custom structural evaluation by the manufacturer. You cannot simply apply standard open area limits to a highly irregular, organic perforation pattern. The manufacturer must verify that the remaining gypsum web is wide enough to support the panel's own weight across the span of the suspension grid.

Evaluate how perforation hole size impacts the visual scale based on ceiling height. Smaller micro-perforations (typically 3mm to 6mm in diameter) blend into a monolithic look when viewed from the floor of a standard commercial space. Larger holes (12mm and above) create distinct architectural textures and shadow lines. Pattern orientation also plays a critical role. Staggered patterns, such as a 60-degree or 45-degree pitch, yield higher open areas and better acoustic absorption than straight 90-degree patterns within the exact same footprint. The staggered layout packs the voids more efficiently.

Unperforated borders around the perimeter of each tile are absolutely mandatory. These edge margins protect the panel edges from chipping during grid installation. They also hide the suspension flanges from viewing angles below. If perforations run completely off the edge of the tile, the grid T-bar will intersect the holes, creating an unfinished, sloppy appearance and compromising the structural integrity of the panel edge.

Calculating and Specifying Open Area Percentage

The percentage of open space acts as the gateway for sound waves to reach the acoustic backing. It is a common misconception that the holes themselves absorb sound. Open area does not absorb sound; it merely permits sound transmission through the rigid gypsum face to the porous absorber behind it. The higher the open area, the more sound energy reaches the fleece and insulation.

Calculating open area requires specific structural nodes based on hole shape and pitch. For round holes in a staggered 60-degree pattern, the formula is generally 90.69 multiplied by the square of the diameter divided by the square of the pitch. Distinct mathematical formulas must be applied when calculating the open area for square, slotted, and hexagonal holes in straight versus staggered rows. Do not guess these numbers. Rely on exact geometry.

1. Determine the exact diameter or width of the perforation.

2. Measure the pitch (the center-to-center distance between adjacent holes).

3. Identify the pattern orientation (straight 90-degree vs. staggered 60-degree).

4. Apply the specific geometric formula for that shape and layout.

5. Verify the calculated percentage against the manufacturer's structural limits.

Leverage manufacturer-provided open area calculators during the design phase. These tools quickly verify that custom hole sizes and pitches yield the required acoustic baseline without violating structural constraints. Identify the structural tipping point where too much open area compromises the GRG panel. For standard gypsum, pushing past 15% to 20% open area typically requires increasing panel thickness or adding structural ribs to the back of the tile to prevent sagging over time.

Acoustic Backing and Plenum Insulation Integration

Specify the factory-applied acoustic tissue, often referred to as non-woven backing or acoustic fleece, bonded to the back of the perforations. This material provides the primary friction required to convert sound energy into trace amounts of heat. Evaluate color choices based on light reflectance and the desire to conceal the plenum space. Black fleece is the standard choice because it creates a deep shadow within the perforations, completely hiding the suspension grid, ductwork, and wiring above the ceiling.

Supplemental plenum insulation is often necessary to hit higher NRC targets, particularly for low-frequency sound absorption. Detail exactly when and how to specify encapsulated fiberglass or mineral wool batts laid over the GRG panels. The encapsulation prevents loose fibers from falling through the perforations into the occupied space below. The impact of plenum depth combined with this insulation dictates the ceiling's ability to absorb lower frequencies. A deeper air cavity behind the panel generally improves low-frequency performance.

Ensure all specified backing materials maintain the Class A fire rating inherent to the GRG panels. The acoustic fleece and any supplemental insulation must be tested as a complete assembly. Specifying a non-combustible GRG panel but backing it with a flammable acoustic tissue creates a severe life safety hazard and will fail building inspections.

Ceiling Grid Layout and Panel Sizing Strategies

Evaluate standard modular sizes, such as 2x2 or 2x4 feet, against custom large-format GRG panels. Standard sizes integrate seamlessly with off-the-shelf lighting fixtures and HVAC diffusers. Large-format panels reduce the number of visible joints, enhancing the monolithic aesthetic, but they carry significant weight implications. A 4x4 foot GRG panel is exceptionally heavy and requires a specialized, heavy-duty suspension system and a multi-person crew for safe installation.

Suspension system selection dictates both aesthetics and functionality. Exposed grids, utilizing standard heavy-duty 15/16" or 9/16" T-bar, offer easier access to the plenum for maintenance. Concealed grids, using T-spline or shiplap edge details, achieve the desired monolithic look but severely limit plenum accessibility. Once a concealed GRG ceiling is taped, mudded, and painted, accessing the space above requires cutting through the finished ceiling.

Designing the grid layout requires precise calculation of perimeter borders to ensure the grid is perfectly centered in the room. You must avoid visually awkward, narrow slivers of tile at the walls. Perimeter panels should always be mathematically calculated to be greater than half the width of a full panel. This ensures adequate structural support at the wall molding and maintains a balanced architectural appearance.

Implementation Risks and Mitigation Strategies

Address the heavy-duty suspension requirements for GRG immediately in the specification. GRG panels routinely exceed the weight limits of standard intermediate-duty grids. Mitigation requires specifying heavy-duty grid components and utilizing 12-gauge hanger wire spaced more frequently than standard acoustic ceilings. Furthermore, require independent support for all lighting, HVAC fixtures, and sprinkler heads. Never allow mechanical or electrical fixtures to rest their weight on the GRG panels.

Detail the necessity of climate control prior to installation. GRG panels must acclimate to the building's operational temperature and humidity levels before being installed in the grid. Installing cold, damp panels in an unconditioned space guarantees warping and deflection as the building dries out. Outline strict handling protocols to prevent micro-fractures in highly perforated panels. Workers must carry the panels vertically, not flat, to prevent the gypsum from snapping under its own weight.

Address the trade-off between seamless GRG installations and the need for maintenance access. A fully monolithic, taped-and-mudded GRG ceiling looks incredible but creates a nightmare for facility managers trying to reach VAV boxes or plumbing valves. Mitigation involves specifying strategically placed, visually integrated access panels within the perforated layout. These access doors can be manufactured with matching perforations to blend into the surrounding ceiling while providing necessary entry points to the plenum.

Specifying a high-performance ceiling system demands rigorous attention to detail, balancing aesthetic desires with harsh structural realities. You must verify load capacities, acoustic test data, and integration tolerances before finalizing the construction documents.

• Request physical samples to evaluate perforation cleanliness and fleece adhesion.

• Consult with an acoustician to verify the open area calculations against the room's reverberation targets.

• Coordinate with the structural engineer regarding suspension loads and seismic bracing requirements.

• Review the manufacturer's proprietary open area calculators to confirm structural viability.

FAQ

Q: What is the maximum recommended open area for a perforated GRG ceiling tile?

A: The maximum recommended open area typically ranges between 15% and 20% for standard gypsum panels. Exceeding this threshold removes too much of the structural web, increasing the risk of panel sag and requiring additional reinforcement or increased panel thickness.

Q: How does the hole pattern orientation affect acoustic performance?

A: Staggered patterns, such as a 60-degree pitch, generally provide a higher open area percentage and better acoustic absorption compared to straight 90-degree patterns within the exact same panel footprint, allowing more sound energy to reach the backing.

Q: What is the difference between hole size and open area percentage?

A: Hole size refers to the physical dimensions of individual perforations, such as a 6mm diameter. Open area percentage is the total proportion of the panel surface that consists of void space relative to the solid gypsum face.

Q: Do perforated GRG ceilings require a specialized heavy-duty suspension grid?

A: Yes. GRG panels are significantly heavier than standard mineral fiber tiles. They require heavy-duty suspension systems with adequate load-bearing capacity, thicker T-bars, and more frequent hanger wire spacing to prevent grid deflection.

Q: How do you calculate the perimeter border width for a ceiling grid layout?

A: Measure the total room width, divide by the panel size, and split the remainder. Ensure the grid is centered so that perimeter panels are greater than half a full panel width, avoiding narrow, structurally weak slivers at the walls.

Q: Can perforated GRG tiles be field-cut for perimeter borders?

A: Yes, they can be field-cut. However, specifying unperforated edge margins is highly recommended to maintain edge strength, ensure clean cuts along the perimeter, and prevent the grid from intersecting the perforation holes.
