The specification challenge in commercial, industrial, and high-risk residential construction is clear. You must mitigate both fire and moisture threats without over-engineering the wall assembly or inflating project costs. Specifying standard panels leaves critical vulnerabilities in wet or fire-prone zones. Conversely, specifying separate barrier systems for fire and water increases labor requirements, material volume, and overall wall thickness. This multi-layered approach complicates architectural details around door frames, windows, and mechanical penetrations.
The construction industry demands streamlined solutions that reduce installation time while maintaining uncompromising safety standards. Relying on outdated paper-faced green boards or standard drywall in high-risk areas fails modern building envelope requirements. We need an evidence-based evaluation of whether a single, specialized panel can meet stringent fire-rating codes while providing verifiable, long-term moisture resistance. By examining the chemical composition, structural mechanics, and field application of advanced drywall technologies, we can determine how to effectively integrate dual-threat protection within a comprehensive wall system.
Absolute "fireproof" drywall does not exist; the industry standard relies on fire-resistant panels (Type X and Type C) featuring non-combustible cores designed to delay structural failure and heat transfer.
True moistureproof gypsum board abandons traditional paper facings in favor of fiberglass mats and treated cores to prevent mold growth and structural degradation.

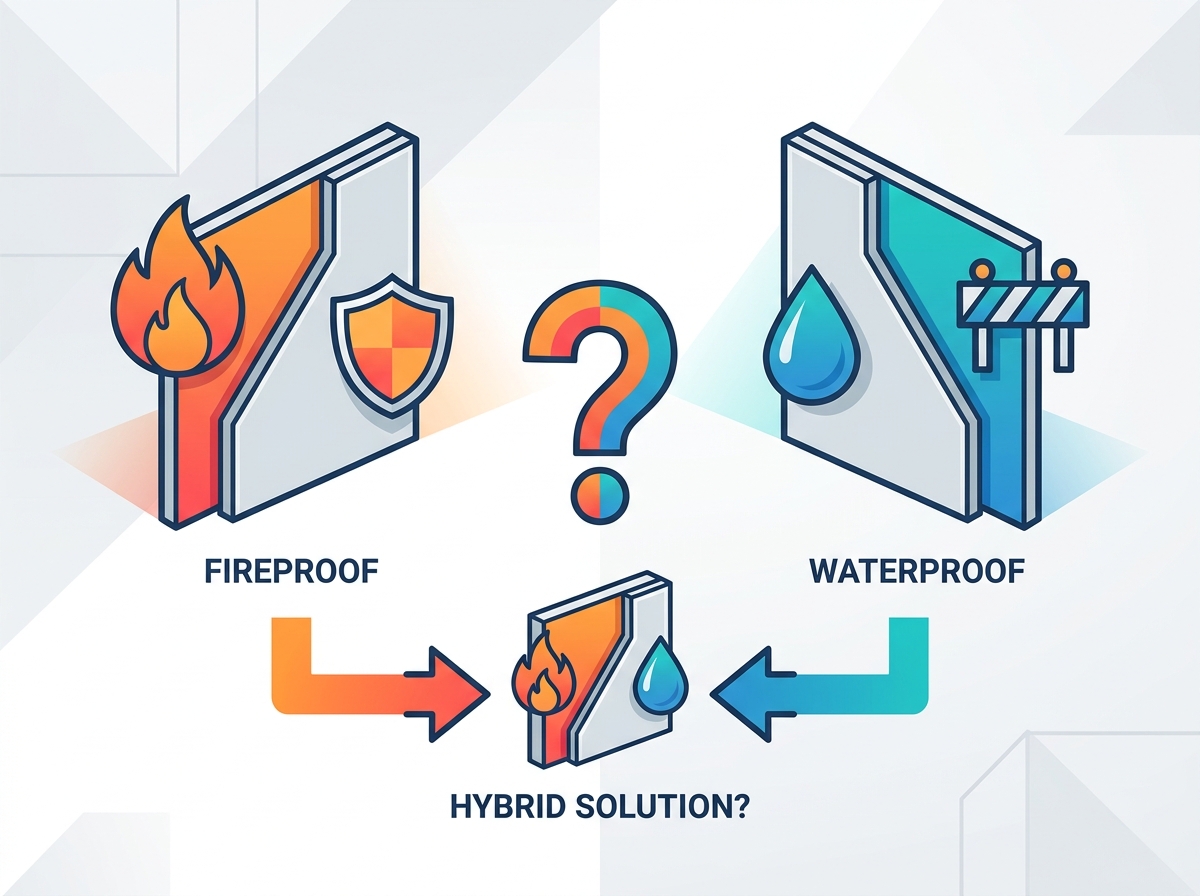

Dual-threat panels (moisture-resistant fire-rated boards) are commercially available but require precise installation within a certified gypsum board wall system to maintain their UL ratings.
Evaluating the total installed cost—factoring in labor efficiency, durability against wear and tear, and lifecycle liability—is critical when justifying the premium price of hybrid specialty panels over standard drywall.
Defining the Success Criteria for High-Risk Wall Assemblies
The Reality of "Fireproof" Gypsum Board
In construction terminology, the concept of a completely impenetrable material is a myth. A true fireproof gypsum board does not exist in absolute terms. The industry relies on "fire-resistant" standards instead. These measurable, code-compliant benchmarks evaluate the performance of non-combustible core formulations under extreme thermal stress. The goal is not to prevent fire indefinitely. The objective is to contain the blaze long enough for occupants to evacuate and for emergency responders to arrive.
The mechanics of this fire resistance rely heavily on a chemical process called calcination. Standard gypsum contains approximately 21% chemically combined water by weight. When exposed to extreme heat, this water vaporizes and releases as steam. This phase change actively absorbs thermal energy and delays heat transfer through the panel. To maintain structural integrity during calcination, manufacturers embed glass fibers into the gypsum core. These fibers act as a reinforcing matrix, preventing the board from crumbling as the water escapes.
Understanding UL Type Designations is critical for proper specification in the field. Type X drywall represents the standard 5/8-inch fire-rated panel. It offers a minimum of a one-hour fire resistance rating when applied to specific framing configurations. Type C panels take this thermal defense a step further. While they share the same 5/8-inch thickness, Type C boards contain a higher concentration of glass fibers and a specialized shrinkage-compensating additive, often vermiculite. This enhanced formulation makes Type C panels ideal for ceiling applications where gravity and extreme heat cause standard Type X boards to sag and fail prematurely.
The calcination process follows a predictable sequence during a fire event:
Surface temperature of the drywall reaches 212°F (100°C).
Chemically combined water begins to vaporize at the exposed surface.
Steam releases into the fire, absorbing massive amounts of thermal energy.
A dry, calcined layer of gypsum forms on the exposed face.
The calcined layer acts as an insulator, slowing the heat transfer to the uncalcined core behind it.
The glass fiber matrix holds the shrinking, calcined gypsum together to prevent structural collapse.
The Mechanics of Waterproof and Moistureproof Gypsum Board
Moisture management in wall assemblies has evolved significantly beyond the traditional "green board." Historically, moisture-resistant drywall relied on standard paper facings treated with wax or asphaltic compounds. While adequate for minor humidity, these paper facings remain organic. When exposed to systemic dampness, plumbing leaks, or high condensation, the paper acts as a direct food source for mold. This leads to rapid structural degradation and compromised indoor air quality.
Advanced moistureproof gypsum board eliminates this vulnerability entirely. Manufacturers replace organic paper with inorganic fiberglass mats. These mats embed directly into a moisture-resistant treated gypsum core during the manufacturing process. Because fiberglass contains zero organic matter, it provides no sustenance for microbial growth, even in continuously damp environments like commercial washrooms or subterranean basements.
Evaluating the efficacy of these boards requires strict adherence to standardized metrics. Permeability ratings dictate how effectively water vapor can pass through the material. This ensures the wall cavity can dry if moisture enters from the exterior. Water absorption rates measure the percentage of weight gained when the board is submerged, verifying the core's resistance to liquid water. Mold-resistance standards, specifically ASTM D3273, subject the panels to severe environmental chamber testing. The boards sit in a high-humidity chamber inoculated with mold spores for four weeks to certify their ability to withstand fungal growth.
Feature | Traditional Green Board | Fiberglass-Mat Moistureproof Board |
Facing Material | Treated Organic Paper | Inorganic Fiberglass Mat |
Mold Resistance (ASTM D3273) | Low to Moderate | Maximum (Score of 10) |
Water Absorption | Moderate (Core swells over time) | Extremely Low (Silicone-treated core) |
Delamination Risk | High when saturated | None (Mat is embedded into core) |
Solution Categories: Evaluating Board Types for Dual Threats
Standard Fire-Rated Panels (Type X/C) in Wet Areas
Standard Type X and Type C panels are engineered specifically for thermal defense. Their primary capability lies in meeting strict 1-hour and 2-hour fire assembly requirements dictated by the International Building Code (IBC). The thick, non-combustible cores provide excellent acoustic insulation and structural rigidity. This makes them the default choice for demising walls, corridors, and stairwells in large-scale commercial developments.
However, their limitations become glaringly apparent when introduced to wet areas. Standard fire-rated panels possess high vulnerability to moisture degradation. The heavy paper facings used to encase the dense gypsum core absorb water rapidly upon contact. Once saturated, the board loses its structural integrity. It becomes soft and highly prone to fastener pull-through. If a pipe leaks inside a wall cavity lined with standard Type X board, the damp paper creates an ideal breeding ground for toxic mold. You will have to execute a complete tear-out and replacement of the affected assembly.
Dedicated Waterproof Gypsum Board
Dedicated moisture-resistant panels excel in environments subjected to continuous humidity and occasional direct water exposure. Their capabilities are proven in applications such as the substrate behind ceramic tile in commercial showers, locker rooms, and industrial kitchens. The fiberglass facing and silicone-treated cores ensure excellent structural stability. They prevent the panel from warping, swelling, or delaminating when wet.
Despite these superior moisture defenses, standard dedicated waterproof gypsum board often falls short of fire safety requirements. Most standard moisture-resistant boards are manufactured with a 1/2-inch core. This thickness lacks the necessary density, mass, and glass fiber reinforcement required to pass commercial fire-rating tests like ASTM E119. Utilizing a standard 1/2-inch waterproof board in a fire-rated partition violates building codes. It compromises the safety of the entire structure and will fail inspection.
Hybrid Solutions: Moisture-Resistant Fire-Rated Panels
To bridge the gap between thermal and moisture protection, manufacturers engineer dual-performance hybrid panels. These solutions combine specially formulated, thick 5/8-inch fire-resistive cores with inorganic fiberglass mats. The core provides the necessary calcination properties and structural reinforcement for UL fire ratings. Simultaneously, the fiberglass facing actively repels liquid water and prevents vapor intrusion.
These hybrid boards represent the pinnacle of drywall technology. They offer uncompromising protection against multiple environmental threats. Ideal use cases include commercial kitchens where high heat and constant sanitization occur simultaneously. They are heavily specified in healthcare facilities to prevent mold-related respiratory issues while maintaining strict fire compartmentalization between patient rooms. Furthermore, these panels serve as exceptional exterior sheathing. They are highly effective in subterranean or basement assemblies where ground moisture and fire codes intersect.
Evaluation Dimensions: Matching Features to Project Outcomes
Code Compliance and UL Assembly Ratings
A frequent point of failure in specification is misunderstanding the critical distinction between a classified gypsum board product and a rated assembly. Purchasing a board stamped with a Type X designation does not automatically grant the wall a 1-hour fire rating. The board is merely one component of a rigorously tested system.
The entire gypsum board wall system dictates the final fire and moisture rating. This includes the gauge and spacing of the steel or wood studs, the type and length of the fasteners, the specific joint tape, and the chemical composition of the joint compound. If a contractor uses non-rated screws, spaces the studs 24 inches on center instead of the required 16 inches, or fails to stagger the drywall joints on opposite sides of the partition, the assembly will fail inspection regardless of the board's quality.
Matching specific UL type designations to approved UL fire-rated systems is non-negotiable to ensure inspection passage. Architects must reference the exact UL design number (e.g., U419, U465, V450) on the blueprints. Contractors must execute the installation exactly as detailed in the UL directory. Any deviation from the tested assembly voids the fire rating and introduces severe liability for the firm.
Structural Integrity and Durability Under Dual Duress
Analyzing how moisture intrusion compromises fire resistance reveals why hybrid panels are essential in high-risk zones. If a standard fire-rated board absorbs moisture from a slow plumbing leak, the gypsum core softens and degrades. Before a fire event even occurs, the board has lost its structural integrity. During a fire, this weakened, saturated board will collapse prematurely. It will fail to provide the intended hour of protection, allowing flames to breach the partition.
Conversely, fire exposure heavily impacts moisture barriers. Many traditional waterproofing membranes or fluid-applied coatings are highly combustible. They rely on petroleum-based polymers. When exposed to extreme heat, these materials melt, ignite, or release toxic off-gassing. Inorganic materials, such as fiberglass mats, are necessary because they remain stable under thermal stress. They prevent the release of hazardous fumes during combustion while maintaining the integrity of the wall.
Beyond extreme events, fiberglass-faced hybrid boards offer superior resistance to daily wear and tear. The dense core and reinforced facing provide higher impact resistance compared to standard paper-faced boards. This durability reduces maintenance requirements in high-traffic corridors, loading docks, and institutional settings where walls are frequently subjected to physical impact from carts and equipment.
Scalability and Application Versatility
Project managers must assess the viability of standardizing a hybrid board across an entire project versus targeted installation only in high-risk zones. Standardizing reduces ordering complexity. It minimizes the risk of contractors installing the wrong board in a critical area. It simplifies inventory management on the job site, ensuring crews do not waste time sorting through different pallets of material.
Targeted installation optimizes material budgets. By mapping out the specific moisture and fire loads of each room, specifiers can deploy premium hybrid boards strictly where necessary. You install them in bathrooms, kitchens, janitorial closets, and exterior walls. You utilize standard Type X boards in dry, interior partitions like offices and conference rooms. This strategic allocation maximizes protection while keeping overall material expenditures in check.
Panel Type | Fire Rating Capability | Moisture Resistance | Core Composition | Facing Material |
Standard Type X | High (1 to 2 Hours) | Low (Highly Vulnerable) | 5/8" Dense Gypsum + Glass Fibers | Organic Paper |
Standard Waterproof (1/2") | Low (Fails Commercial Codes) | High (Prevents Mold/Rot) | 1/2" Silicone-Treated Gypsum | Fiberglass Mat |
Hybrid Fire/Moisture Board | High (1 to 2 Hours) | High (Prevents Mold/Rot) | 5/8" Dense Treated Gypsum + Fibers | Inorganic Fiberglass Mat |
Cost-to-Value Trade-Offs in Specification
Material Costs vs. Labor Efficiency
Analyzing the upfront premium cost per square foot of hybrid fire and moisture boards is essential for accurate project forecasting. These specialized panels carry a higher initial price tag due to the advanced manufacturing processes required to integrate fiberglass mats and chemically treated cores. For large-scale developments, this premium can noticeably impact the initial material procurement budget.
Specifiers must compare material premiums against the substantial labor savings generated by installing a single-layer system. Traditional methods for achieving dual protection often involve multi-layer assemblies. Crews might install a layer of Type X drywall, followed by a secondary waterproofing membrane or a layer of cement board. These multi-step processes require additional labor hours, extended curing times for liquid membranes, and complex coordination between different trades. A hybrid panel eliminates these secondary steps. It allows framing and drywall crews to enclose spaces rapidly, accelerating the overall construction schedule.
Long-Term Lifecycle and Liability
Calculating the return on investment for risk mitigation requires looking beyond the construction phase. The true value of hybrid panels lies in avoiding future catastrophic failures. Mold remediation costs, structural rot repair, and fire damage liabilities easily dwarf the initial savings of using cheaper, inadequate materials. A single moisture intrusion event behind a tiled commercial shower can necessitate tearing out the entire wall assembly if standard paper-faced boards were used.
The specification of premium, dual-threat materials directly impacts insurance premiums and facility downtime. Commercial insurers frequently assess the resilience of the building envelope when determining rates. Utilizing inorganic, fire-rated assemblies demonstrates a proactive approach to risk management. In the event of a minor fire or plumbing leak, facilities utilizing hybrid boards experience significantly less downtime. The walls remain structurally sound and require minimal cosmetic repair rather than total replacement.
Implementation Risks and Mitigation Strategies
Joint Treatment and Penetration Vulnerabilities
A high-performance panel is only as effective as its weakest seam. A major implementation risk involves using standard, non-rated tape and joint compound on a moistureproof gypsum board. Standard drying-type compounds are water-soluble and highly susceptible to mold. If moisture penetrates the joints, it bypasses the fiberglass facing and attacks the core edges. This creates weak points for both fire and water intrusion.
The required mitigation strategy is specifying chemically compatible, fire-rated, and moisture-resistant sealants. Contractors must use setting-type joint compounds, commonly referred to in the field as "hot mud." Setting-type compounds cure via a chemical reaction rather than evaporation, providing superior water resistance and a harder finish. All mechanical penetrations, such as pipes, ductwork, and electrical boxes, must be sealed with approved intumescent fire caulking. This caulking expands under heat to choke off flames while providing a watertight barrier during normal operation.
Proper joint treatment execution requires strict adherence to the following steps:
Apply a bed of setting-type joint compound over the panel seam.
Embed alkali-resistant fiberglass mesh tape into the wet compound.
Wipe the joint tight with a taping knife to remove excess mud and eliminate air pockets.
Allow the chemical cure to complete before applying subsequent fill and finish coats.
Seal all perimeter gaps at the floor and ceiling tracks with acoustical or intumescent sealant.
Exterior Application Challenges and 1-Hour Ratings
Detailing exterior walls presents unique challenges. This is particularly true when the assembly requires a strict 1-hour fire rating on the exterior side while managing prolonged exposure to weather elements before the final exterior cladding is installed. Standard drywall will disintegrate under rain and wind load during the construction phase.
Mitigation requires utilizing exterior-grade, fire-rated gypsum sheathing equipped with specialized weather-resistant fiberglass mats. Contractors must maintain strict adherence to manufacturer exposure warranties. These warranties typically dictate maximum exposure limits, such as 12 months, before the cladding must be applied. Proper integration with weather-resistive barriers (WRBs) and flashing tapes is critical. You must ensure water is directed away from panel edges and fastener penetrations, preserving the fire-rated core throughout the building's lifespan.
Conclusion
Standardize the use of 5/8-inch, fiberglass-faced Type X or Type C panels in all wet zones to guarantee thermal defense and moisture resistance.
Verify that every component, including stud gauge, fastener type, and joint compound, strictly aligns with the specific UL design number required for the partition.
Mandate the application of moisture-resistant, setting-type joint compounds and intumescent sealants to protect panel seams and mechanical penetrations.
Cross-reference all selected materials against ASTM D3273 for mold resistance and ASTM E119 for fire testing before finalizing procurement orders.
Consult with a structural engineer or code official during the design phase to validate that the proposed single-layer wall assembly meets local municipal fire codes.
FAQ
Q: What makes a fireproof gypsum board different from standard drywall?
A: Standard drywall offers minimal fire resistance. A fire-resistant board (Type X or C) features a denser gypsum core reinforced with glass fibers. During a fire, the core releases chemically combined water as steam to delay heat transfer. The glass fibers prevent the panel from crumbling under extreme thermal stress.
A: Thickness directly correlates to fire resistance duration. A 5/8-inch Type X board contains more gypsum mass and chemically combined water than a standard 1/2-inch board. This increased mass extends the calcination process, allowing the panel to achieve strict 1-hour or 2-hour commercial fire ratings.
Q: Can you use waterproof gypsum board behind a fire-rated wall assembly?
A: Yes, but only if it is a hybrid moisture-resistant fire-rated panel. Standard 1/2-inch waterproof boards lack the density and reinforcement required to pass UL fire tests. Using them in a fire-rated partition will void the fire rating of the entire assembly.
Q: Are Type X and Type C gypsum boards naturally moistureproof?
A: No. Standard Type X and Type C boards are encased in heavy organic paper. While they resist fire, this paper facing absorbs water rapidly and acts as a food source for mold. They require specialized fiberglass facings to become moistureproof.
Q: What is the most reliable gypsum board wall system for commercial bathrooms?
A: The most reliable system utilizes 5/8-inch fiberglass-faced hybrid Type X panels installed over metal framing. The seams must be finished with setting-type, moisture-resistant joint compound and fiberglass mesh tape to ensure the entire assembly resists both fire and continuous humidity.
Q: How does existing moisture damage affect the fire rating of drywall?
A: Moisture damage severely compromises fire ratings. Water saturation degrades the gypsum core, causing it to soften and lose structural integrity. If a fire occurs, the weakened board will collapse prematurely, failing to provide the required hour of thermal protection.
Q: Is exterior gypsum sheathing rated for both fire and water resistance?
A: Yes, exterior-grade gypsum sheathing is specifically engineered for dual threats. It features a dense, fire-rated core combined with treated, water-repellent fiberglass mats. This allows it to withstand weather exposure during construction while maintaining structural fire ratings.
